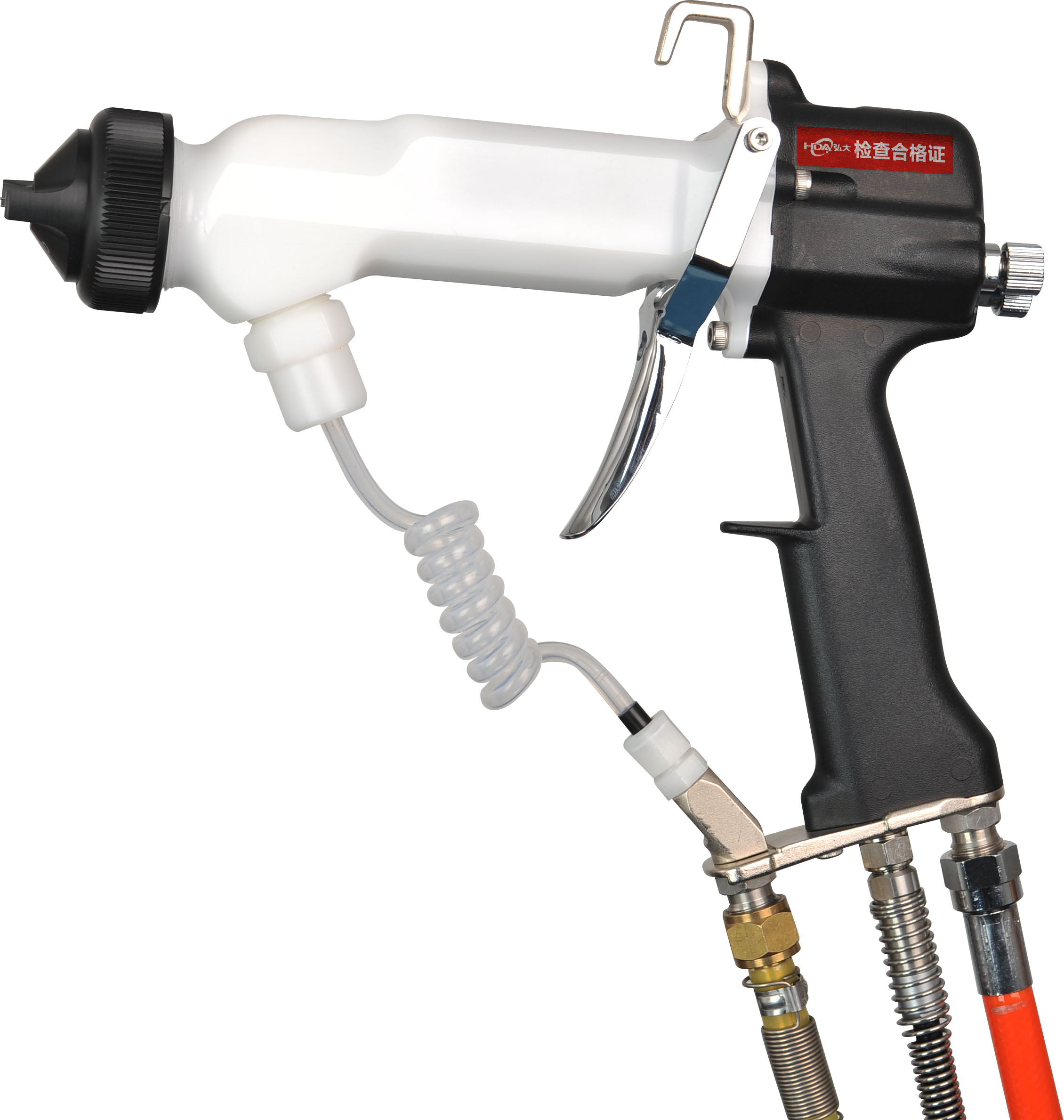

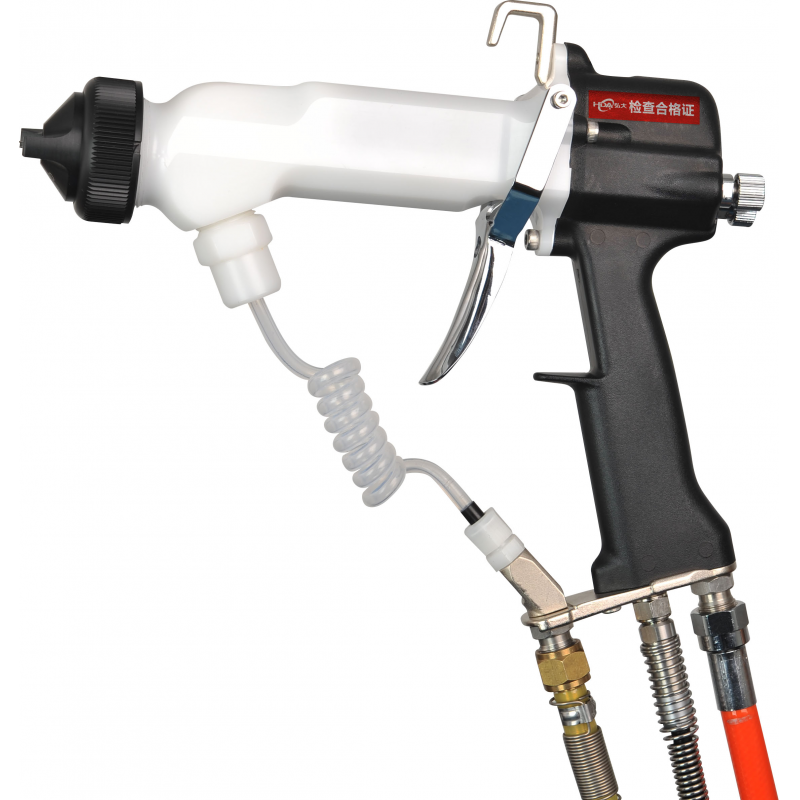

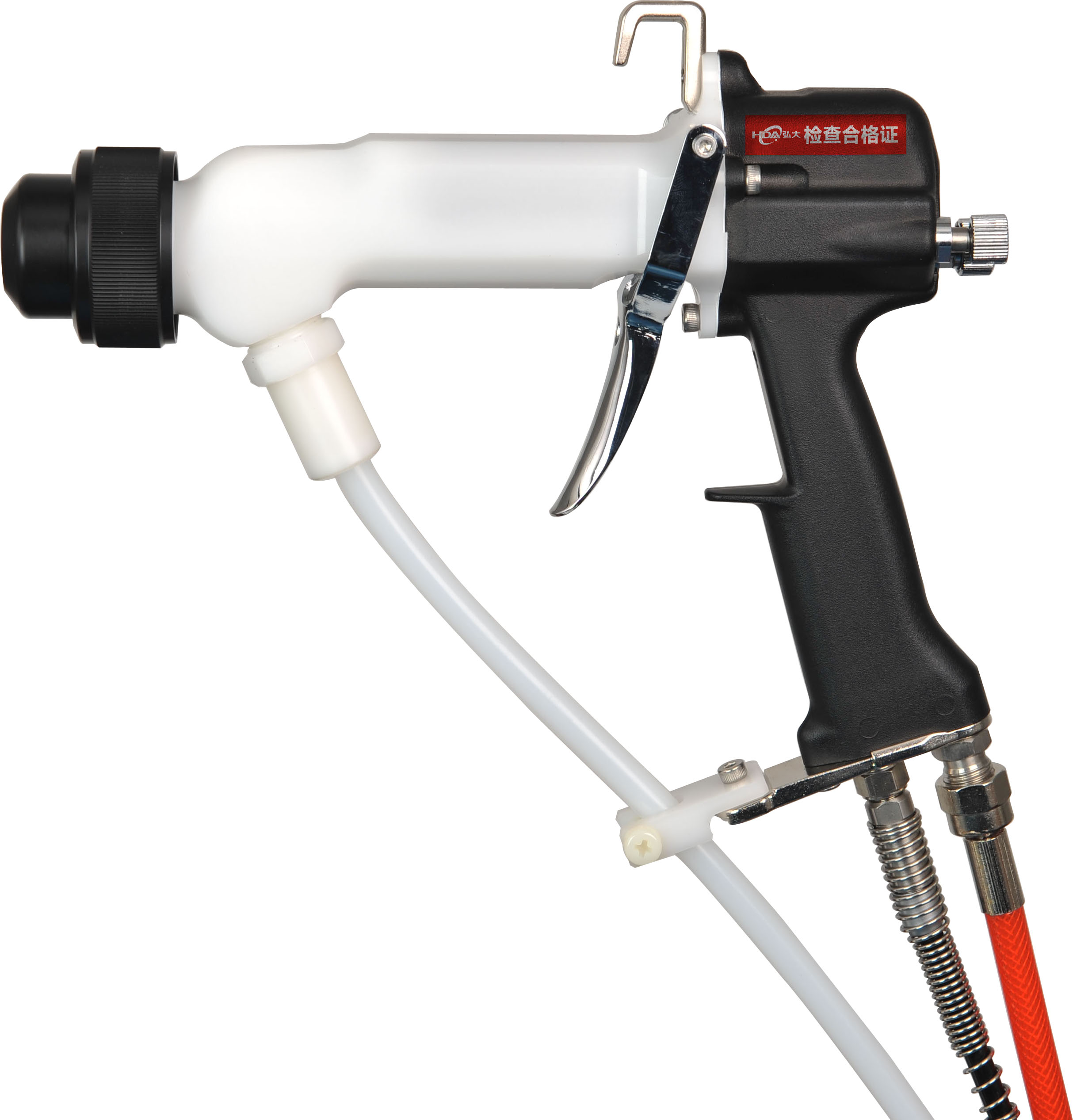

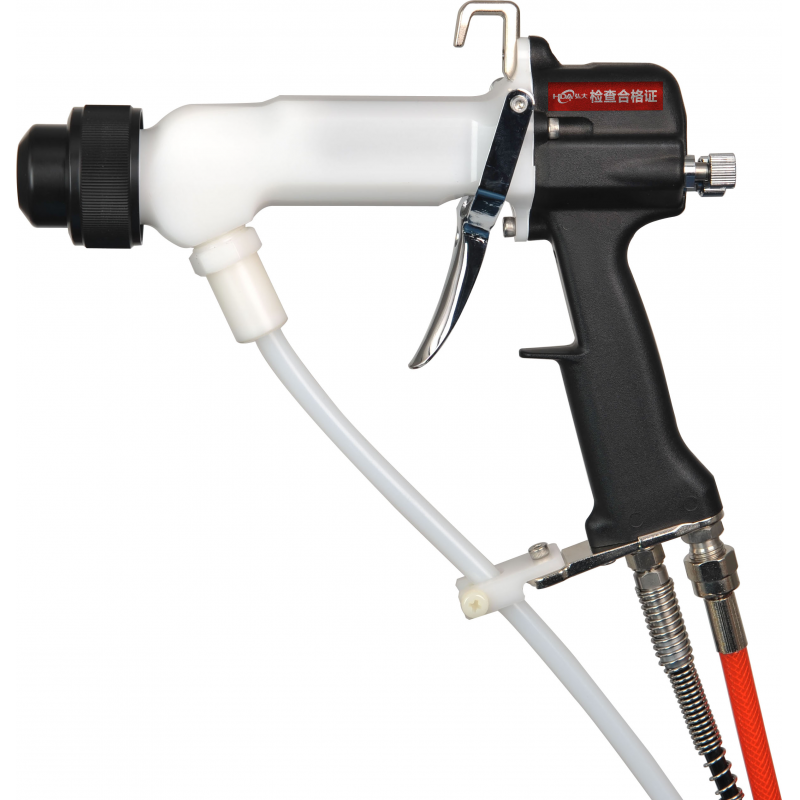

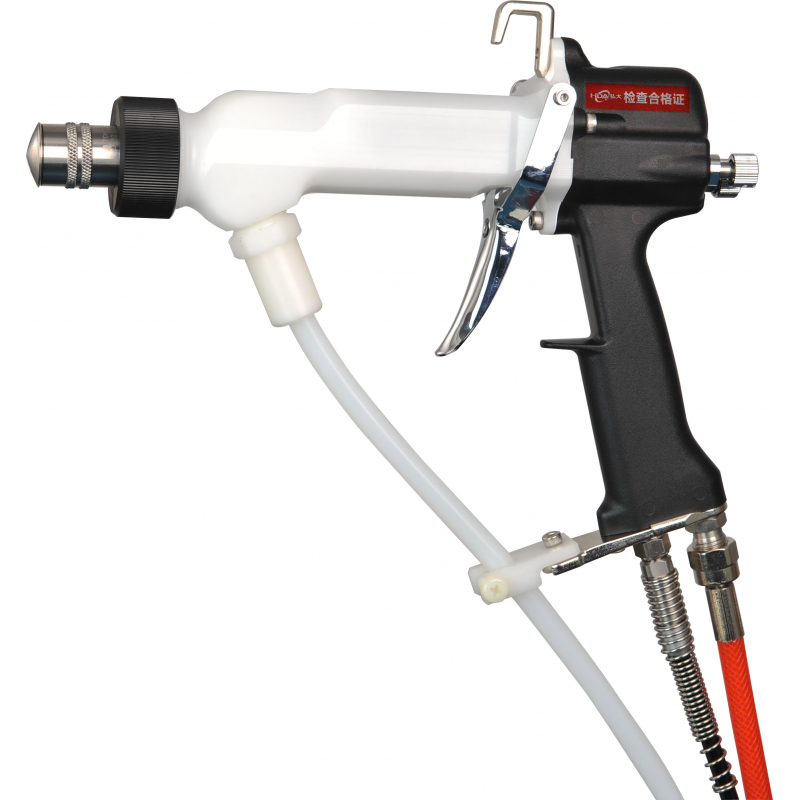

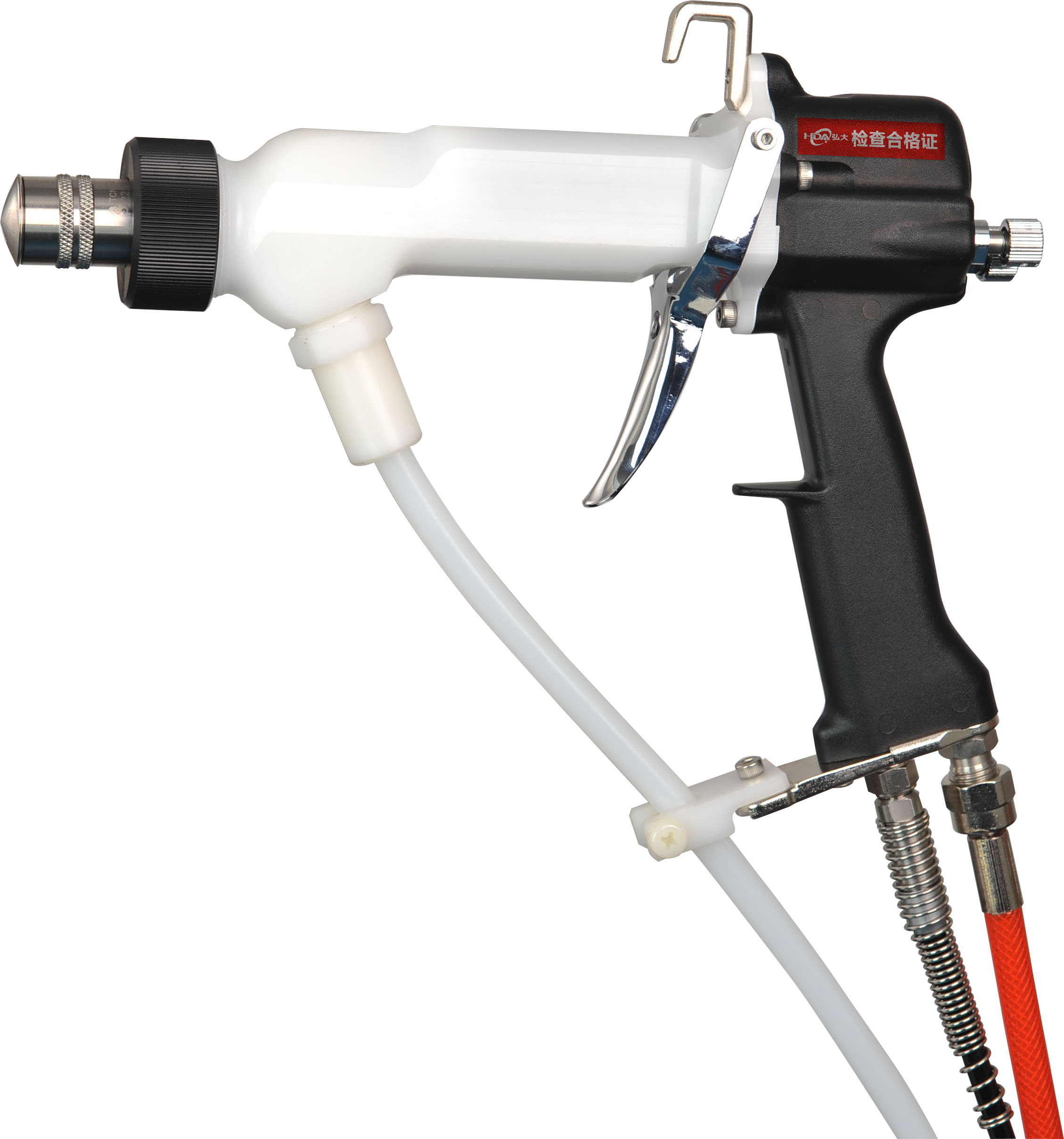

HDA-1020 Manual Electrostatic Spray Gun

①High Electrostatic Transfer Efficiency · Cuts Paint Waste & Cost

lectrostatic charge makes paint mist wrap around and coat edges instead of bouncing off — cutting overspray waste, coating material use and VOC emissions. HONGDA reports up to 30% lower coating consumption and VOC versus conventional air spraying (manufacturer data).

Verified in HONGDA's in-house testing: up to 30% higher coating utilization and 30% lower VOC emissions versus conventional air spraying. Test details available on request.

②Smooth, Factory-Quality Finish

Produces an ultra-fine paint mist and a smooth coating, ensuring uniform coverage even on complex workpieces and hard-to-reach areas.

Official figures: 30% increase in coating utilization rate, 30% reduction in VOC emissions (independent verification recommended).

③ All-Day Comfort

Weighing just ~490 g with a contoured, ergonomic handle, the gun sits naturally in your hand — spray continuously through full shifts with no hand fatigue, so your stroke stays steady, output stays consistent, and finish quality doesn't drift as the day goes on.

Gun weight: ≈ 480 g (≈ 0.48 kg / 1.06 lb) Gun length: 231 mm with flat nozzle · 238 mm with round nozzle (9.1–9.4 in)

④ Safe, Bare-Hand Operation

The DC-60kV generator is fully sealed inside the gun body — no exposed high-voltage components or cabling. The grounded handle stays at zero potential, so operators can spray with bare hands, without electric-shock risk (per HONGDA operating manual).

Built-in DC-60kV generator, sealed inside the gun body; grounded grip held at zero potential (per HONGDA operating manual).

⑤ Output & Spray Width in Seconds

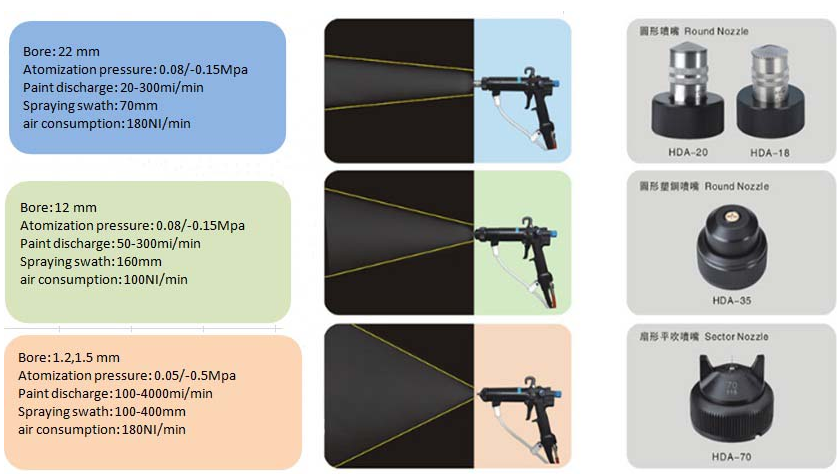

Fine-tune paint output and spray width directly on the gun with a single rotary control, mid-spray, without downtime. Cover broad flat surfaces fast, then switch to precise, controlled coating of small or irregular parts — one gun, no line stop, no second setup.

The DC-60kV generator is fully sealed inside the gun body — no exposed high-voltage components or cabling. The grounded handle stays at zero potential, so operators can spray with bare hands, without electric-shock risk (per HONGDA operating manual).

⑥ One Gun, Many Jobs

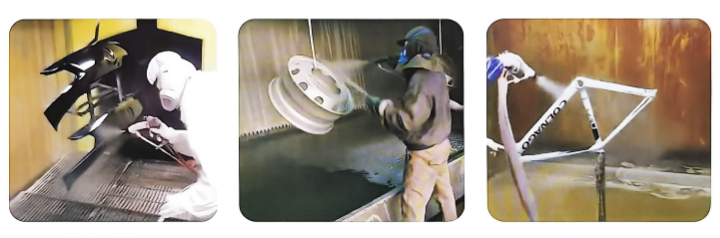

Handles all conductive, general and metallic coatings — PU, UV-curing, acrylic, solvent- and water-based — across hardware, wood, sports equipment, furniture and automotive finishing. One gun covers multiple jobs, so you invest in one tool instead of several.

Works with conductive, general and metallic paints — PU, UV-curing, acrylic, solvent- or water-based — and covers hardware, wood, sports equipment, automotive and furniture finishing.
