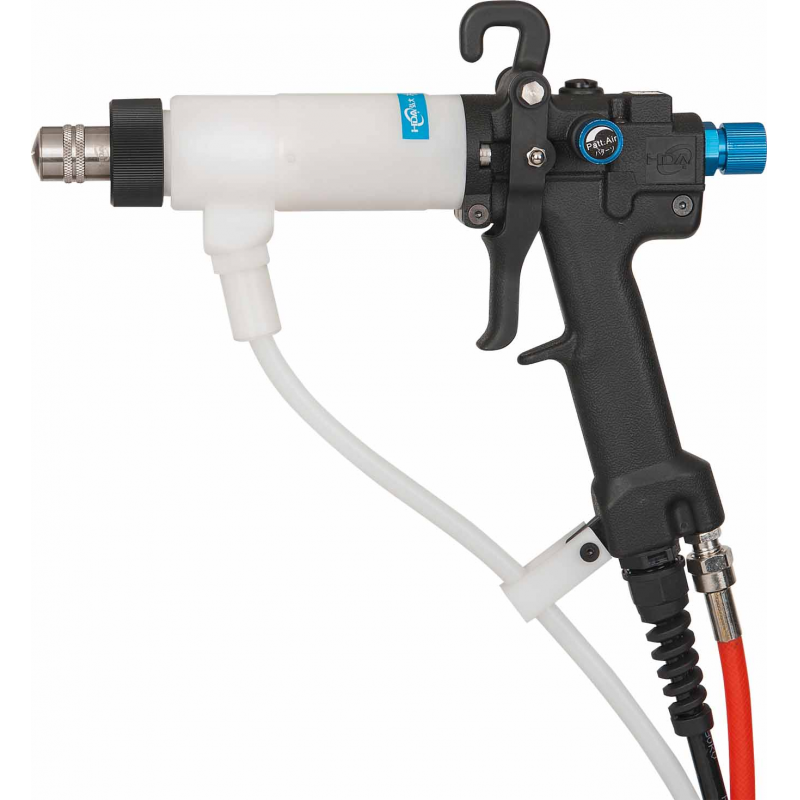

HDA-360 solvent based paint electrostatic spray gun



Water-Based Coating – Core Product Advantages

Eco-Friendly & Resource-Saving

Strong Adhesion & Wide Environmental Adaptability

Smooth & Uniform Coating Film With Great Protection

Easy Operation & Low Maintenance Cost




  • Parameter
  • Process flow
  • Related products
  • Inquiry
Parameter

Eco-Friendly & Resource-Saving Formula Adopting water as the core solvent, this water-based coating effectively saves industrial resources and reduces chemical waste. It contains no benzene, TDI or other harmful solvents, causing no harm to the human body and zero pollution to the environment. It is a pure green, eco-safe coating solution that meets global environmental protection standards.

Excellent Adaptability & Super Strong Adhesion Different from traditional coatings, this product supports direct construction on wet surfaces and in humid working environments. It features outstanding compatibility with various material surfaces and ultra-strong adhesive force, avoiding peeling, blistering and falling off caused by moist substrates, ensuring stable and long-lasting coating performance.

Uniform Film Formation & Superior Protective Performance The coating forms an even, flat and dense paint film after construction. The finished film delivers reliable anti-corrosion, wear-resistant and barrier protection for substrates. Meanwhile, the formula is optimized to resist bubbles and particle generation, presenting a smooth, delicate and high-grade surface texture.

Cost-Effective & Easy Operation With a user-friendly formula and simple structural design, the whole construction process is labor-saving and convenient. No complicated operation steps are required. More importantly, all coating tools can be directly cleaned with clean water, which drastically cuts down the consumption of chemical cleaning agents, reduces construction costs and lowers secondary pollution.

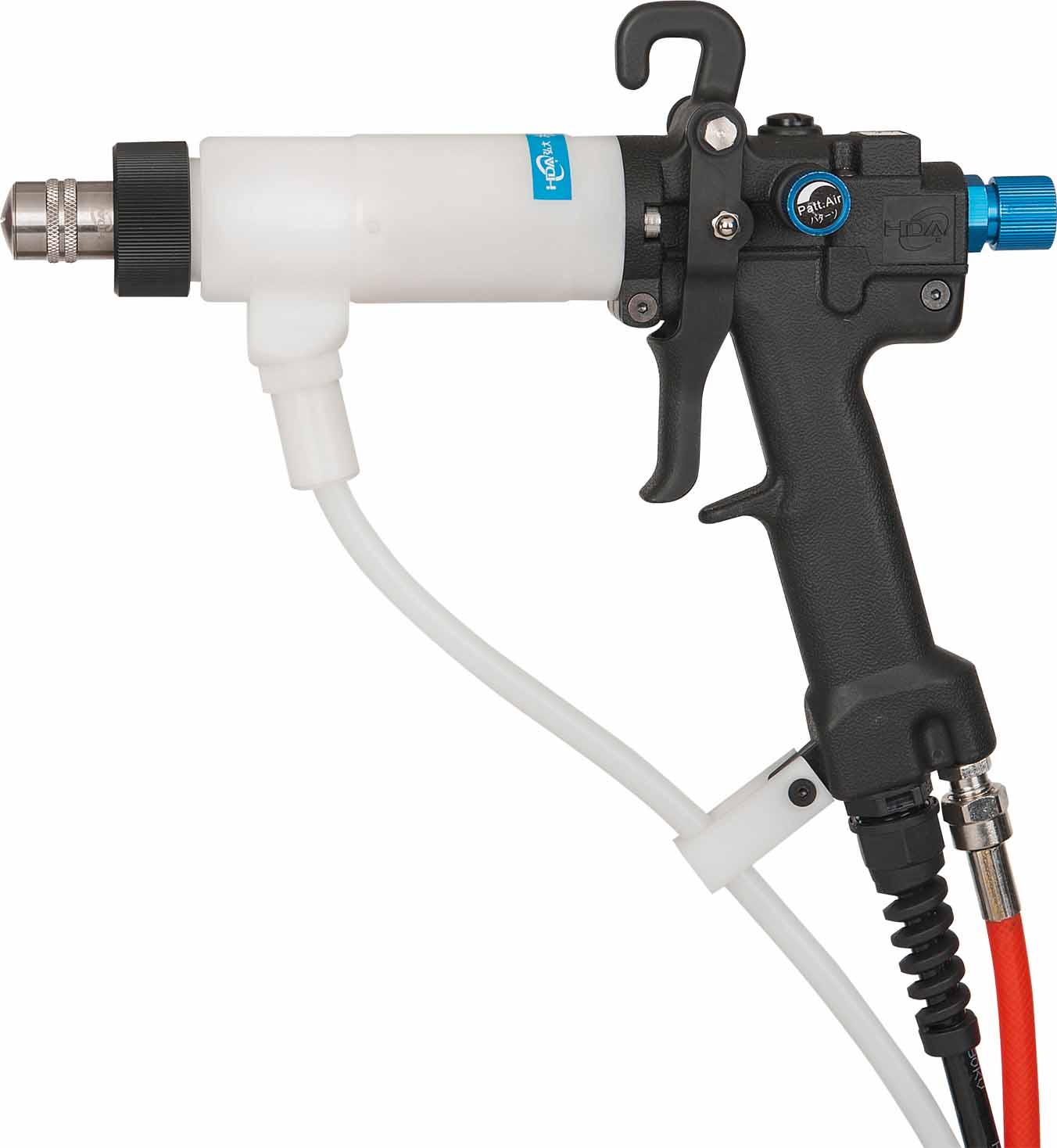

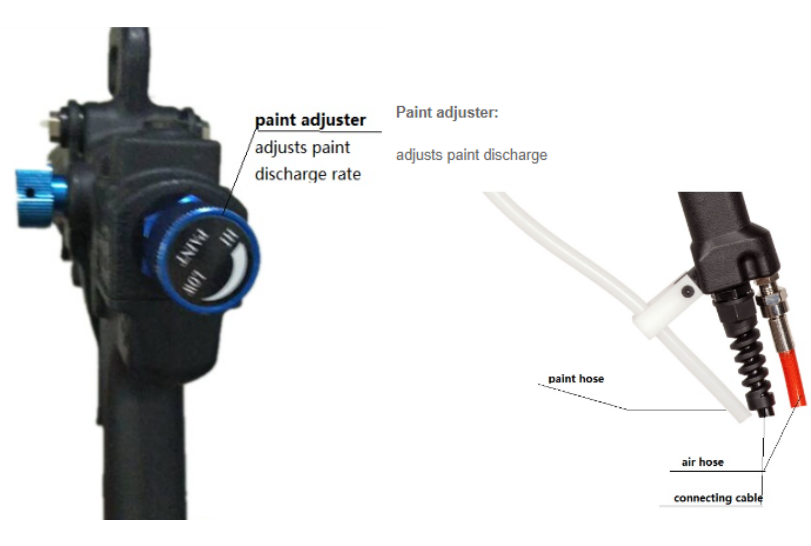

water based paint spray gun

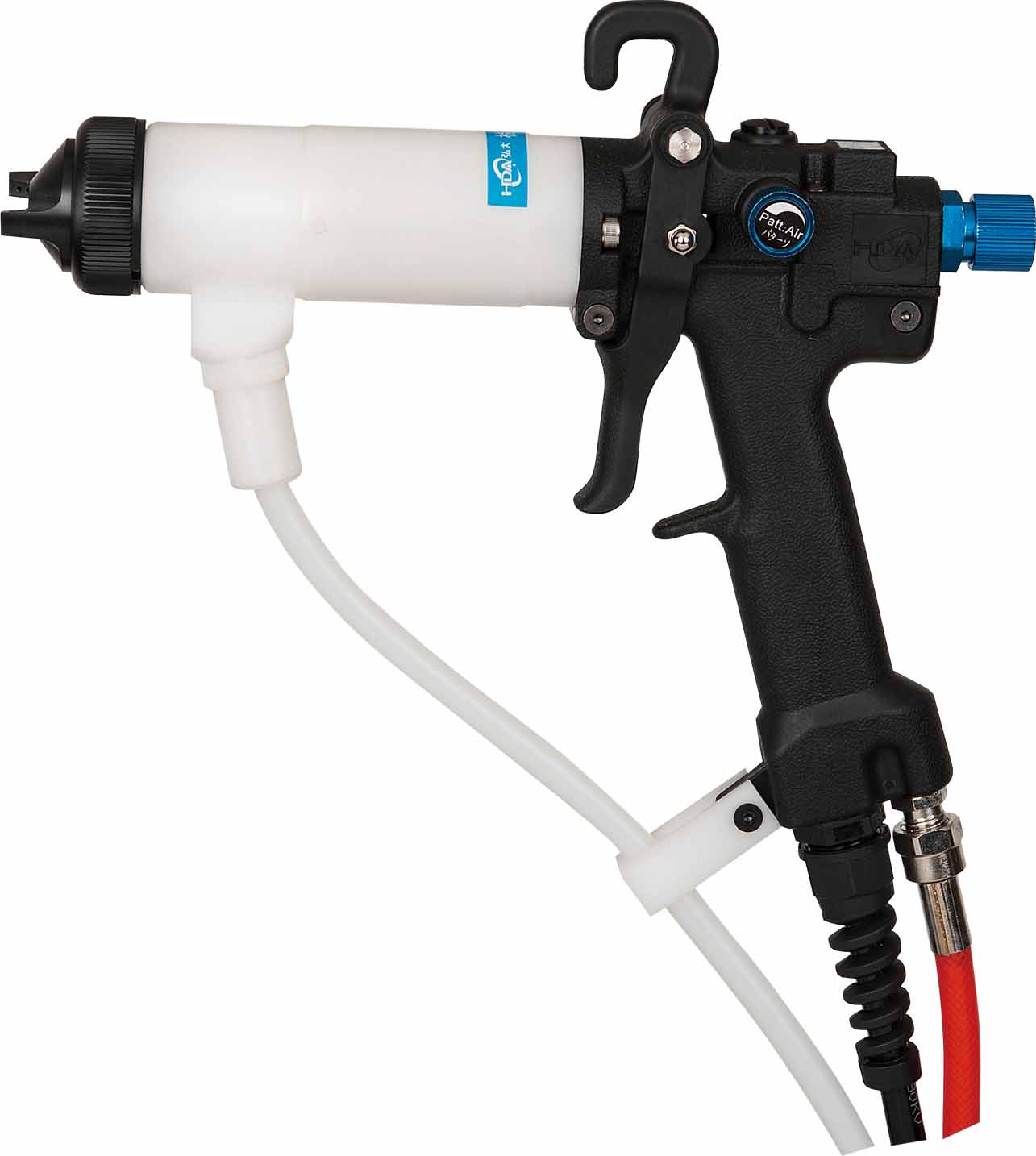

sovent based paint spray gun

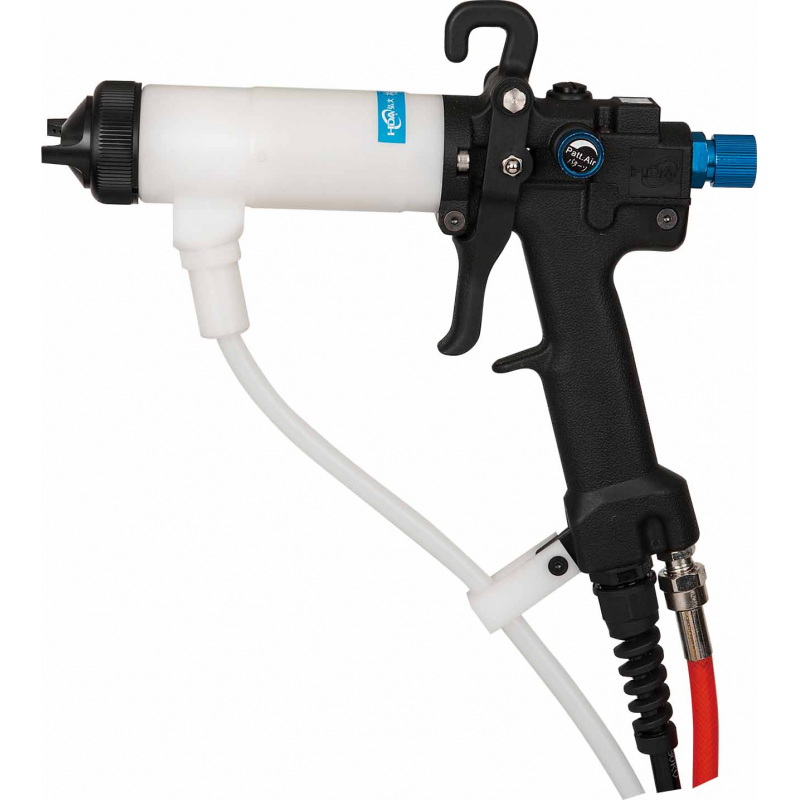

HDA-360 solvent based electrostatic spray gun:

Max voltage



DC-60KV

Hydraulic pressure

Standard

0~0.3MPa

Max

 0.6MPa

Air pressure

Standard

0.05~0.4MPa

Max

0.6MPa

Air consumption

350N1/mm

Air inlet

PF1/4

Paint inlet

PF1/4

Length of the gun

248mm (the the fan nozzle HDA-70)

Length of the cable

8meter, Max 10meter

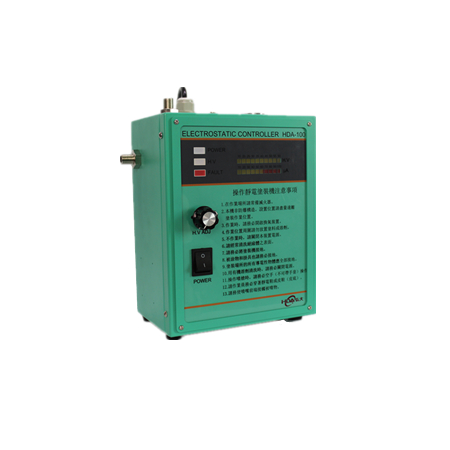

electrostatic spray gun controller HDA-100

Output adjustment 0-60 KV
high voltage switch
Air flow switch
 supply voltage
AC 110 V-220 VHZ
 dimension
220 X 145 X 270
 application environmen
temperature 0-45℃
 dampness 20-80℃

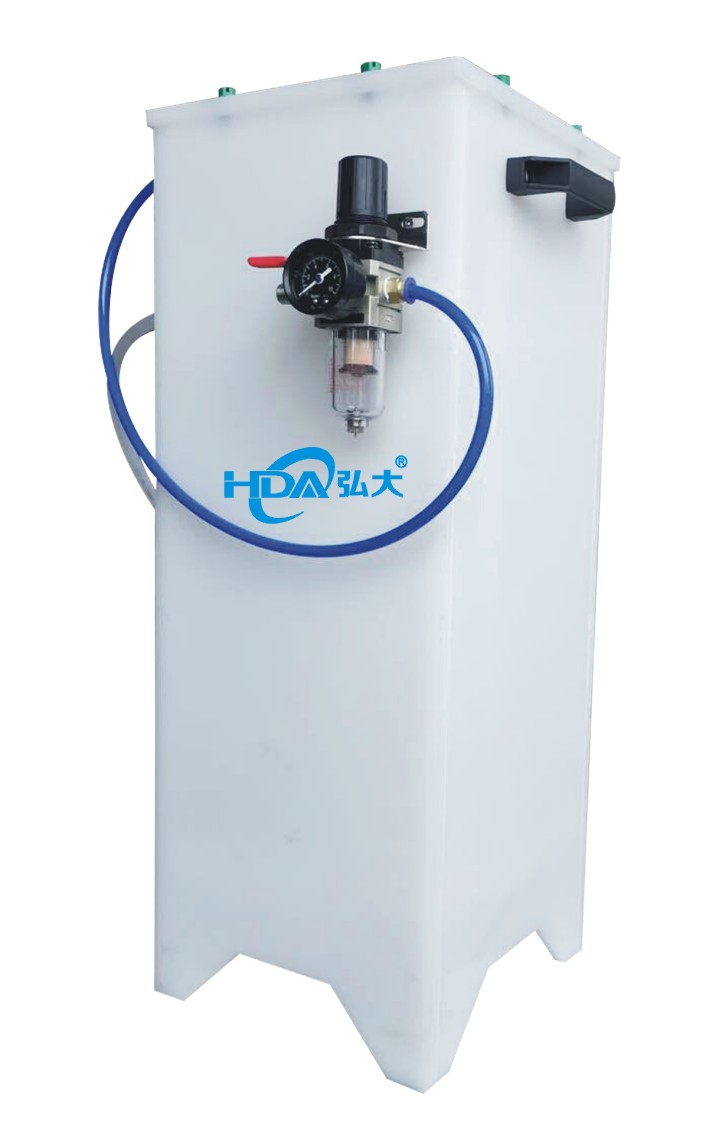

Isolation Design for Water-Based Electrostatic Spraying

Insulation material is adopted to separate the paint delivery system from the ground, preventing paint grounding issues. Compatible with existing spraying equipment, this isolation system is the most widely adopted solution across general industries.

 It features easy setup and significant cost savings for your water-based electrostatic spraying operations.

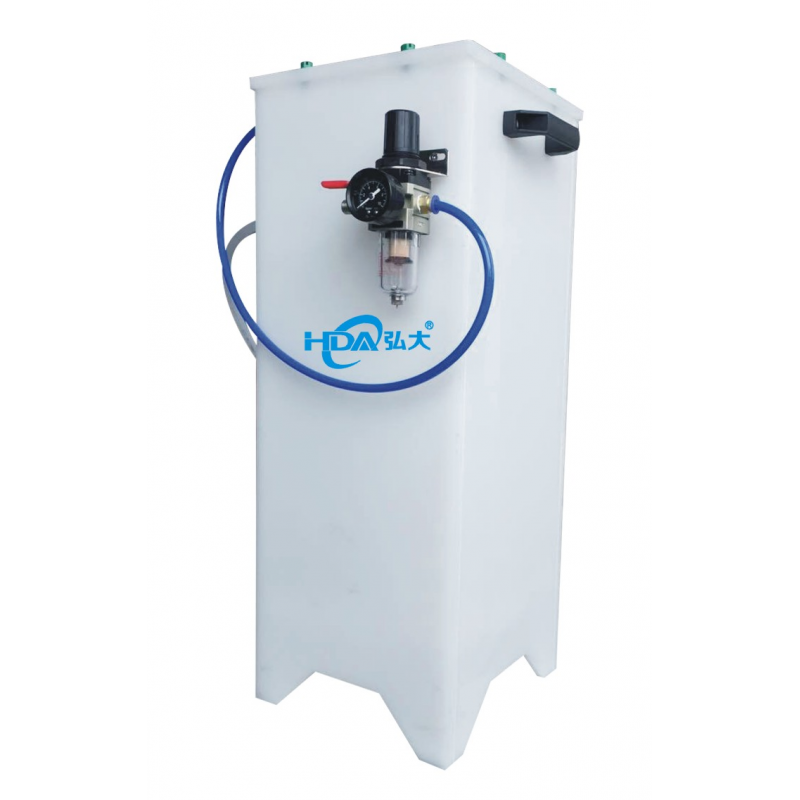

solvent based paint diaphragm pump

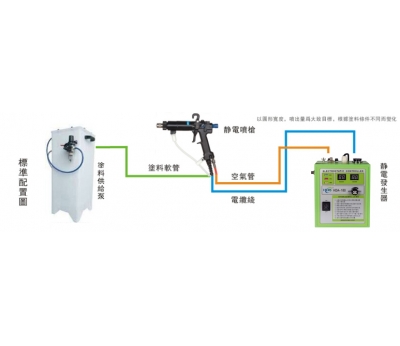

liquid paint spray gun

Process flow

1.Raw Material

2.SMT

3.Testing

4.Welding

5.Assembly

6.Aging Test

7.Testing

8.Packing

9.Warehouse
