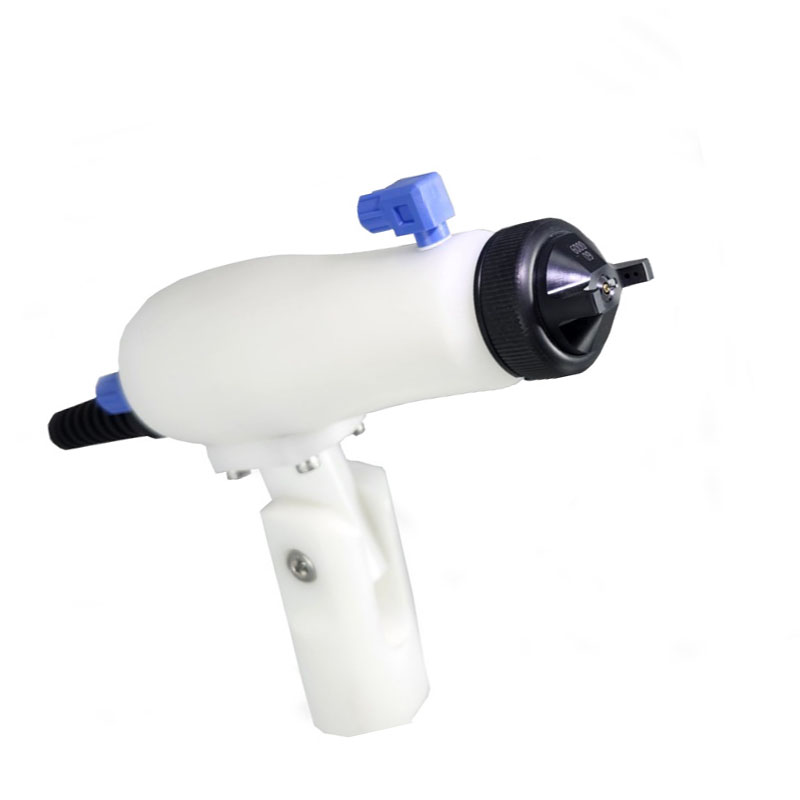

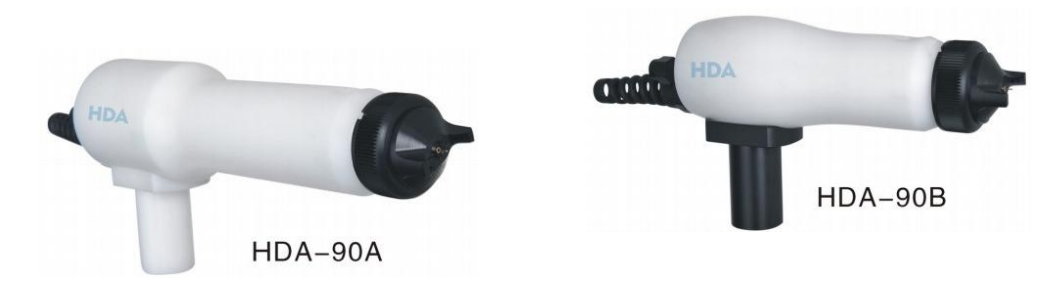

HDA-90 Automatic Electrostatic Spray Gun

The HDA-90 automatic electrostatic spray gun is designed for general industrial applications. It features a simple structure and easy maintenance. With strong paint fog penetration and compatibility with a wide range of coatings, it delivers outstanding surface finishing results. It is the ideal choice for large-area spraying jobs that require powerful coating penetration.

· Automatic air atomizing electrostatic spray gun for general industrial use

· Simple structure and hassle-free maintenance

· Powerful paint mist penetration performance

· Compatible with a wide range of paints

· Outstanding surface finishing results

· Ideal for large-area fine color coating spraying needing strong paint penetration

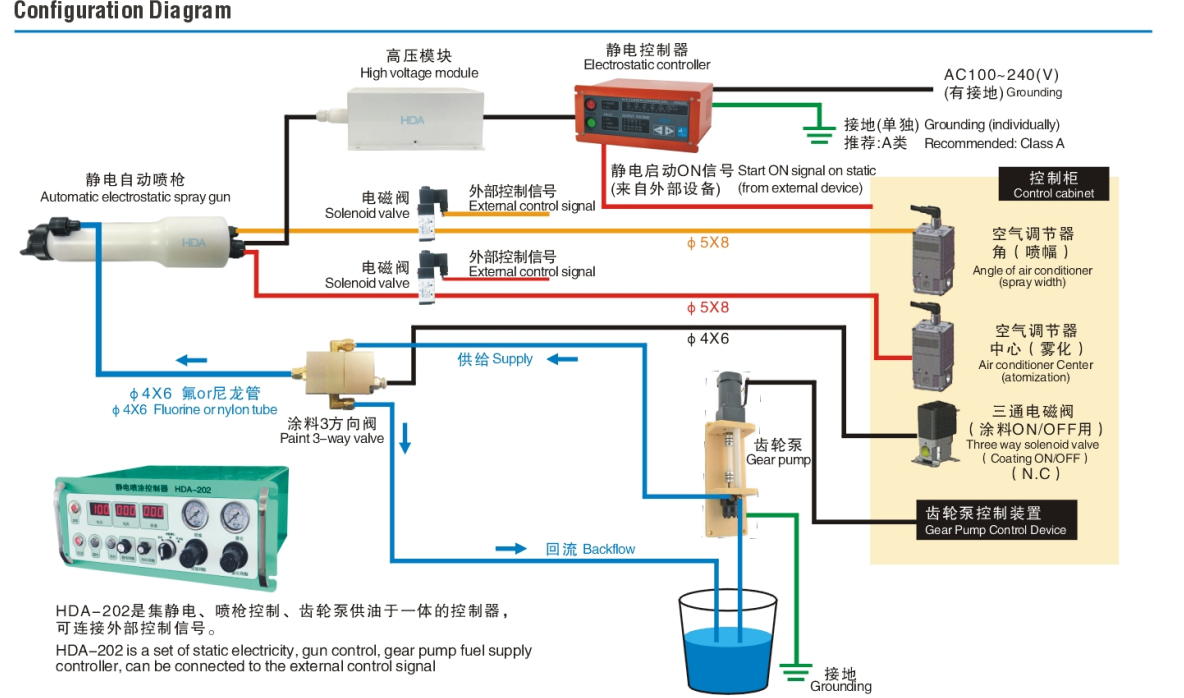

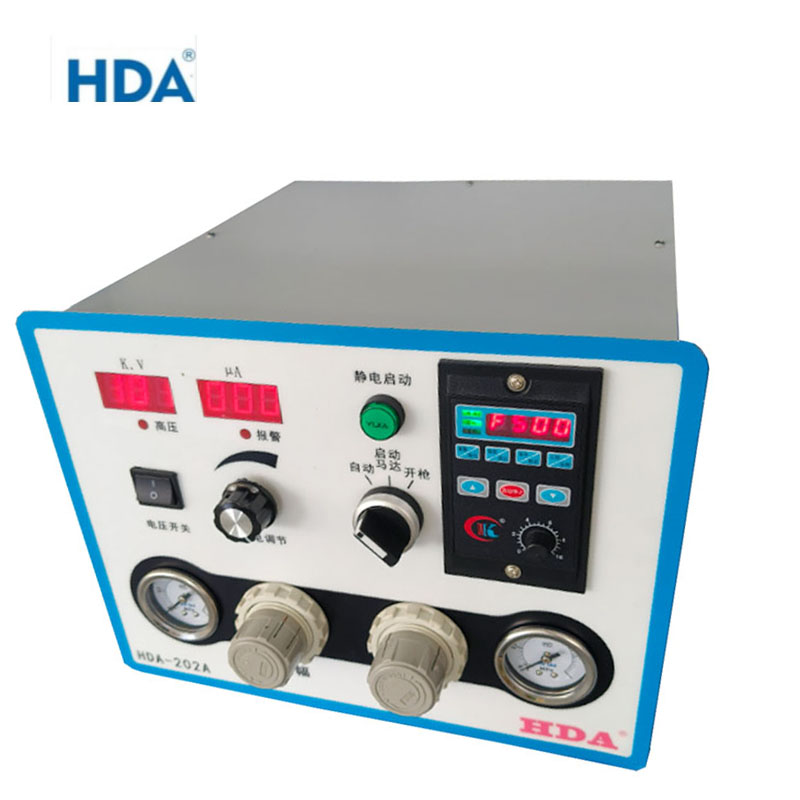

HDA-202 smart control cabinet

Control Functions

1. Electrostatic spray gun atomization & spray width air adjustment
2. Coating on/off control for the electrostatic spray gun
3. Adjustable paint discharge flow of the spray gun
4. High voltage static switch and adjustment
5. Support connection with external control signals

H.V power

1、 Input voltage：AC24V±2V，20KHZ±1KHZ

2、 Output voltage：DC0-80KV（adjustable）

3、 Output current：200μA（MAX）

4、 Polarity: negative

Function Description

The safety detection device works in conjunction with the high-voltage generator. This current sensing safety protection unit greatly improves equipment safety and reliability. It monitors high-voltage current within the spraying environment. If the high-voltage current exceeds the preset safe threshold during operation, the electrostatic controller immediately sends a signal to the main control system to cut off power to the entire unit. Equipment can only be restarted after the root cause of the overcurrent has been identified and corrective actions implemented. This prevents safety incidents triggered by excessive high-voltage current.
