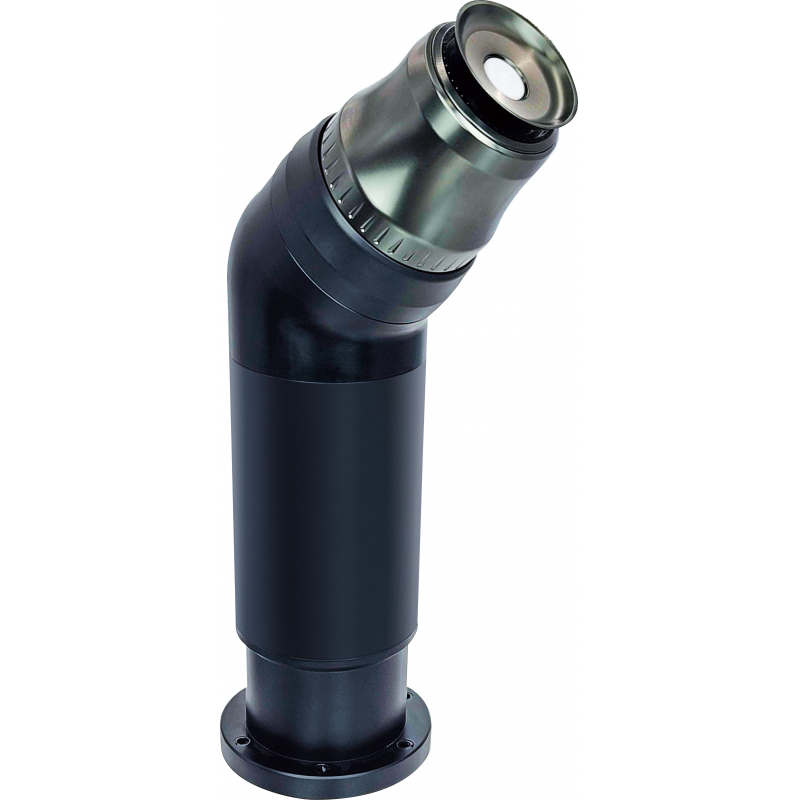

HDA-605 Electrostatic Rotary Bell Atomizer For Robotic Spray

• Robot-Ready Design – Compact, lightweight construction mounts directly on robot wrists and integrates seamlessly into automatic painting cells for non-stop production.

• 70,000 RPM Air-Bearing Turbine – Ultra-fine, consistent atomization for a premium finish across every cycle, with a contact-free design that keeps continuous lines running with minimal wear.

• High Transfer Efficiency, Less Waste – Electrostatic wrap-around charging cuts overspray and lowers paint consumption per part, improving line economics.

• Full Process Flexibility – Three interchangeable bell cups (Ø30 / Ø50 / Ø65 mm) with matching spray-forming covers adapt atomization and pattern to any paint type and workpiece geometry.

• Safe for Unmanned Operation – Multiple safety protection circuits and self-diagnostic high-voltage control deliver reliable, monitored performance around the clock.

• Low-Maintenance Uptime – Protective covers prevent paint contamination of gun and hoses; compact structure and few spare parts make servicing quick and simple.

Inquiry

Parameter

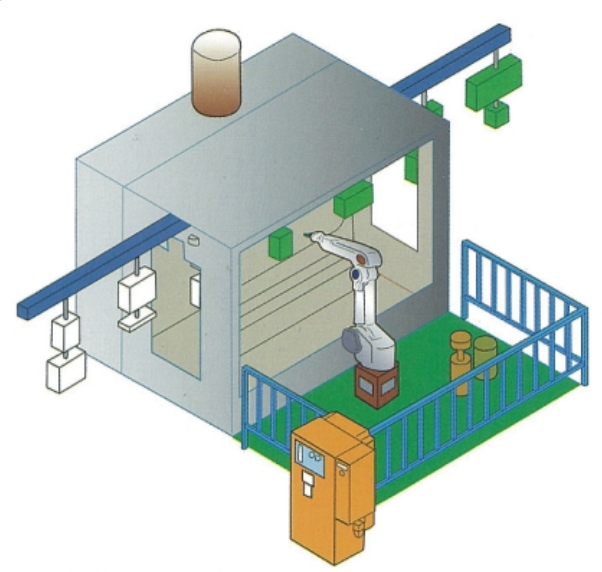

Process flow
Related products
Inquiry

Parameter

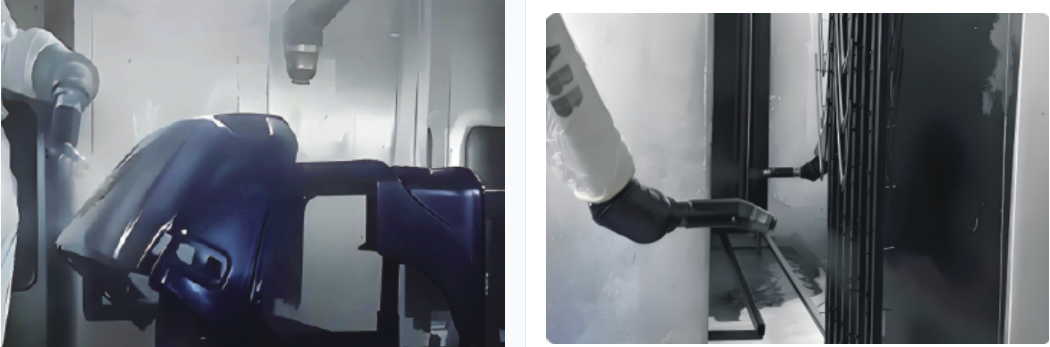

HDA-605 Robotic Liquid Electrostatic Rotary Bell Spray Gun The HDA-605 robotic model is a high-speed electrostatic rotary bell spray gun engineered for robot-integrated painting cells and automatic coating lines that demand outstanding surface quality, high paint transfer efficiency, and long, trouble-free service life. Built for continuous operation, the HDA-605 mounts directly onto the robot wrist and delivers consistently fine atomization through a powerful air-bearing turbine motor reaching up to 70,000 RPM. The contact-free turbine eliminates mechanical wear, while conventional, high-solid, and water-based paints all atomize to an exceptional finish, keeping the system operating under optimal conditions around the clock. Flexibility is built in for mixed production. Three interchangeable bell cups — Ø30 mm, Ø50 mm, and Ø65 mm — paired with matching spray-forming covers let the line optimize atomization and spray pattern for different paint types and workpiece shapes, from small components to large body panels, without changing the gun. Safety and uptime come standard for unmanned operation. The electrostatic high-voltage system features multiple safety protection circuits and a self-diagnostic function for safe, reliable performance. Protective covers keep the spray gun and pipelines free from paint contamination, while the compact design and reduced spare-parts count make assembly, disassembly, and maintenance quick and easy. Applications: robotic painting cells, automatic automotive coating lines, industrial finishing, furniture and metal coating, and aftermarket refinishing automation.

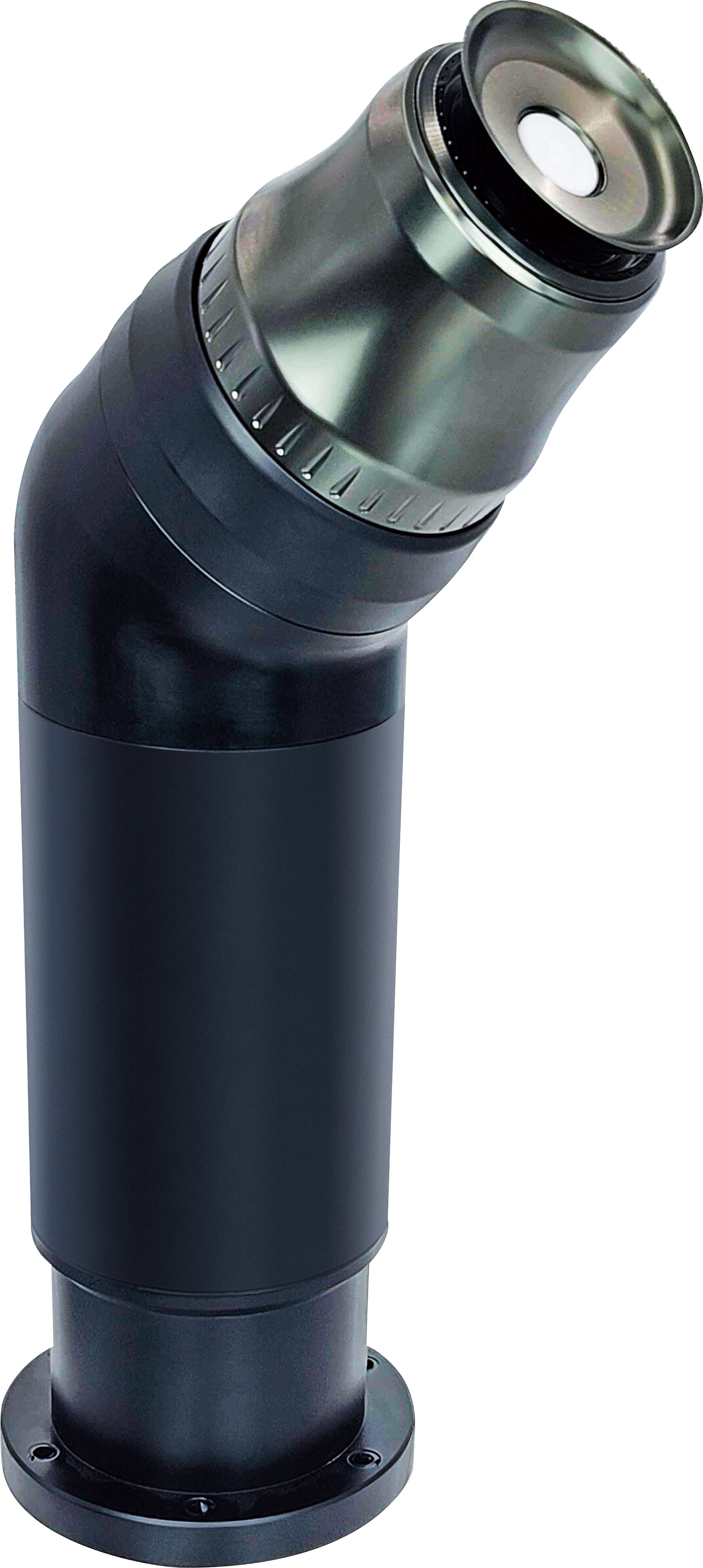

robotic rotary bell atomizer HDA-605

Specification	Detail
Model	HDA-605 (Robotic Model)
Max. Turbine Speed	70,000 RPM
Turbine	Air-bearing, contact-free design
Compatible Paints	Conventional, high-solid, water-based
Bell Cup Options	Ø30 mm / Ø50 mm / Ø65 mm
High-Voltage System	Electrostatic with multiple safety protection circuits & self-diagnostic function
Integration	Robot wrist mounting; automatic painting cell ready
Maintenance	Compact structure, few spare parts, easy assembly & disassembly
