HDA-605 Electrostatic Rotary Bell Atomizer For Reciprocator Coating

• Ultra-Fine Atomization, Premium Finish – The 70,000 RPM air-bearing turbine delivers exceptionally fine atomization for a flawless, high-gloss surface, even on high-solid and water-based paints.

• High Transfer Efficiency, Less Paint Waste – Electrostatic charging wraps paint evenly onto the workpiece, dramatically reducing overspray and cutting paint consumption per part.

• Engineered for Long Service Life – The contact-free air bearing turbine eliminates mechanical wear, delivering extraordinary durability and minimal downtime for continuous production lines.

• One Gun, Three Bell Cups – Interchangeable Ø30 mm, Ø50 mm, and Ø65 mm bell cups with matching forming-air caps let you dial in the optimum spray pattern for different paint types and workpiece geometries.

• Safe, Smart High-Voltage System – Multi-layer safety protection circuits with self-diagnostic function keep operation safe and reliable around the clock.

• Easy to Maintain, Clean to Run – Protective covers keep the spray gun and hoses free from paint contamination; compact structure, fewer spare parts, and tool-free assembly/disassembly cut maintenance time to a minimum.

Inquiry

Parameter
Process flow
Related products
Inquiry

Parameter

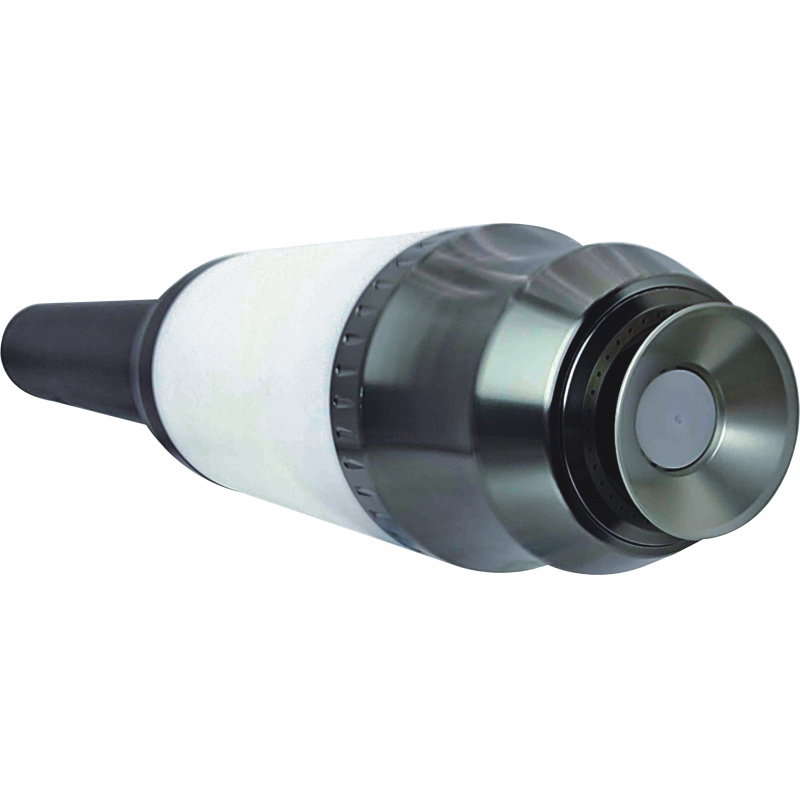

HDA-605 High-Speed Electrostatic Rotary Bell Atomizer

The HDA-605 delivers outstanding performance, excellent surface quality, and high paint transfer efficiency, backed by an extraordinary service life that makes it one of the most reliable rotating bells in today's market.

Powered by a robust, high-performance air-bearing turbine motor reaching up to 70,000 RPM, the HDA-605 achieves exceptionally fine atomization across conventional, high-solid, and water-based paints, ensuring the system always operates under optimal conditions.

A wide selection of bell cups and spray-forming covers is available. The HDA-605 is equipped with three interchangeable bell cups — Ø30 mm, Ø50 mm, and Ø65 mm — so the optimum combination of bell head and spray-forming cover can fully meet the quality requirements of different paint types and workpiece shapes.

The electrostatic high-voltage system features multiple safety protection circuits and a self-diagnostic function for safe, reliable operation. Protective covers on the pipelines and spray gun prevent paint contamination, while the compact structure, minimal spare parts, and easy assembly and disassembly make maintenance simple and cost-effective.

Applications: automotive painting lines, industrial coating, furniture and metal finishing, robotic paint cells, and aftermarket refinishing.

HDA -605 rotating bell atomizer

Specification	Detail
Model	HDA-605
Type	High-speed electrostatic rotary bell atomizer
Max. Turbine Speed	70,000 RPM
Turbine	Air-bearing (contact-free) design
Compatible Paints	Conventional, high-solid, water-based
Bell Cup Options	Ø30 mm / Ø50 mm / Ø65 mm
High-Voltage System	Electrostatic with multiple safety protection circuits & self-diagnostic function
Maintenance	ompact structure, few spare parts, easy assembly & disassembly
